The PGD500 produced by the German company INFICON is a high-performance Pirani vacuum gauge display designed for accurate pressure measurement in the low to medium vacuum range. This display, part of the INFICON range of vacuum gauge products, provides an extremely efficient and economical pressure monitoring solution when combined with INFICON’s Pirani standard vacuum gauges such as the PSG5xx series.

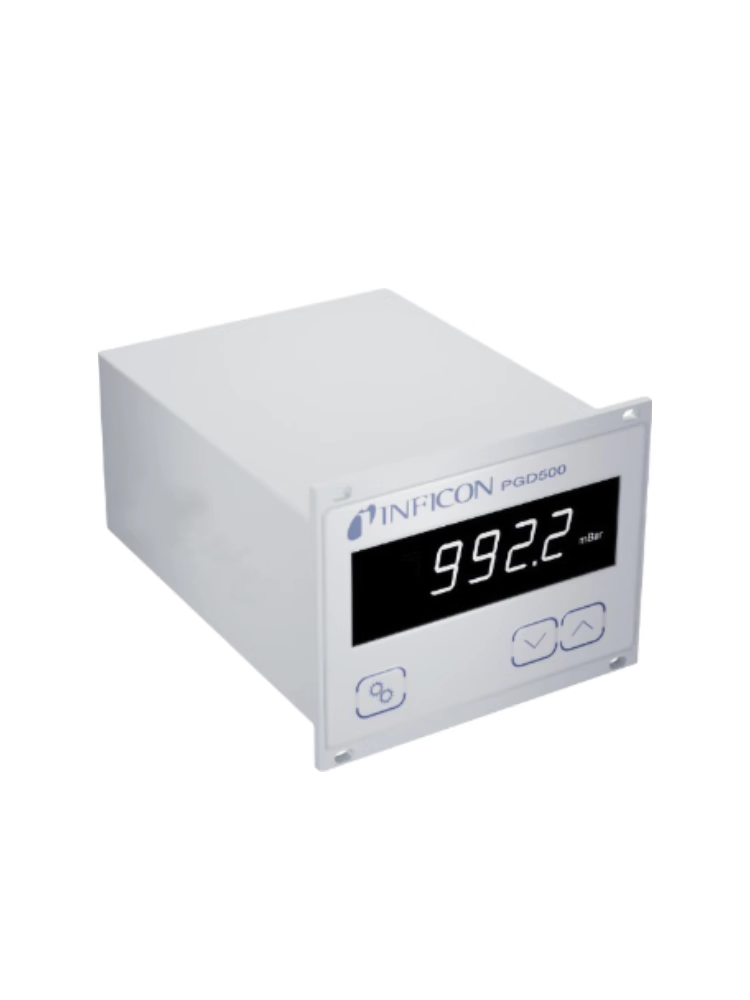

The PGD500 vacuum gauge display adopts a modern digital design and is equipped with a four-digit LED display, ensuring clear visibility and easy readability in various environmental conditions. The large 10mm active LED display allows users to easily read measurement data from long distances or from wide viewing angles. In addition, its push-in plug design simplifies the installation process and uses a 15-pin D-Sub interface to eliminate the need for additional power connections, thus improving the overall integration convenience of the device. The PGD500 is not only compact in size, but also compatible with a variety of INFICON Pirani vacuum gauges and possibly other types of vacuum gauges, making it suitable for use in semiconductor manufacturing, scientific research laboratories, vacuum coatings, and other applications requiring precise vacuum control. Through advanced signal processing and control technology, PGD500 can achieve fast response, stable and reliable pressure measurement, and can be seamlessly connected with automation systems to further improve work efficiency and production quality. In short, the German Infcon PGD500 vacuum gauge display has set a new standard in the field of vacuum measurement and has become a trusted choice for customers in many industries with its excellent performance, user-friendly interface and flexible compatibility.
Applications
Pre-vacuum pressure measurement
Pressure measurement at extraction chamber filling stations for RAC applications
Pressure measurement of Dingpao production line
General vacuum measurement and control in the medium and low vacuum range
| appendix | material code | |
| Sensor power1) | 1.3 m (4.27 f) | 398-498 |
| Seal with centering ring and filter | DN 16 ISO-KF | 211-090 |
| Rack mount adapter 2HE/3HE | ||
| 1)Other lengths available upon request | ||
| Specification | ||
| PGD500 | ||
| Measuring channel (sensor to be connected) | 1(PSG5xx, PCG5xx or MPG series) | |
| monitor | led | |
| scope | Pa
millibar |
5×10-2…1×10-5
5×10-4…1000 |
| Measurement | 1/s | 30 |
| Unit of measurement (optional) | Pascal, millibars, torr | |
| set value | ||
| set point relay | 1 | |
| Adjustment range | 1×10-3..500 | |
| lag | ≥10% of measured value | |
| relay contacts | floating changeover contact | |
| Contact rating | Volt (AC)/Ampere | 50/5 |
| Connector | D-Sub, 9-pin, male | |
| Analog output | v | 0..10.3, sensor output signal |
| power | ||
| power supply | volt (communication) | 100…240 |
| frequency | hertz | 50…60 |
| Power consumption | Fu’an | ≤30 |
| temperature | ||
| run(environment) | degrees celsius | +5…+50 |
| storage | degrees celsius | -20…60 |
| Relative humidity | <=80%(max+31 degrees celsius)
Down to 50% (at +40°C) |
|
| Protection level | IP20 | |
| weight | kg | 0.85 |
