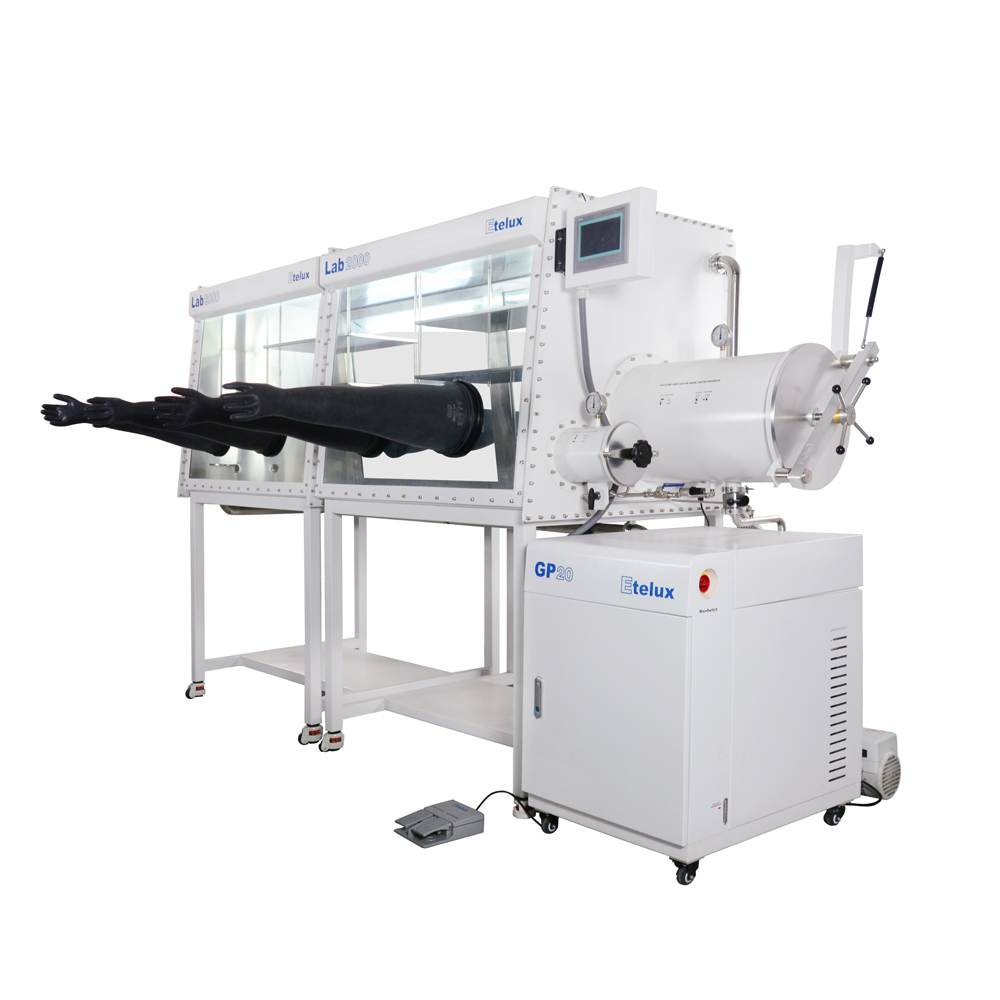

Inert Controlled 4 Glove Glovebox Long 2400mm

This Inert Controlled Long 2400mm Glovebox System are complete standalone systems integrated with entire functional components. They are able to create an inert environment with less than 1 ppm of H2O and O2. The systems are modulated with antechambers, removable windows, adjustable trays, lighting units, adjustable shelves, and gloves, which meet most of the operational needs in the glovebox. The systems are made of welded stainless steel and are equipped with highest-quality components. We also provide optional components to meet your special requirements.

Factory Price, Hige Quality

Add to wishlist
Categories: ,
Description

Key Features

  • Glove box with all-welded stainless steel design
  • All stainless steel pipework
  • Removable front window as an entry for large equipment
  • Purifier regeneration frequency once per year
  • Automatic antechamber control
  • Main antechamber plus mini antechamber
  • Vacuum pump for antechambers
  • Oxygen Analyzer and Moisture Analyzer
  • Auto purge function
  • User friendly and simple operation: Color LCD touch panel and PLC controller
  • Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
  • Automatic regenerable H2O/O2 purifier
  • Attainable purity O2<1 ppm , H2O<1 ppm (dew point also available for moisture reading)
  • Industry leading low leak rate of <0.05% Vol/hour at -10 mbar condition
  • Stainless steel encapsulated blower with frequency converter
  • Circulation capacity more than 84 m3/h (50 cfm) at ΔP = 60 mbar (60 Hz)
  • Compatible with world-wide voltage standards
  • Integrated high vacuum feedthrough
  • Conform to CE and UL
  • Three year limited warranty, and lifetime technical support

Typical applications

Create an oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling, solar cell assembly, hemoglobin, and metabolic research, catalyst handling, medicine synthesis, nuclear industry, a membrane of organic EL preparation, etc.

Our services

DP18-84765_dt_bnr_1-1_Installers

Delivery

Delivery is by 1 week after contract award.

DP18-84765_dt_bnr_1-2_Financing

Shipping

you can choose the free shipping method for you.

DP18-84765_dt_bnr_1-3_Guarantee

Installation

we provide additional installation services .

DP18-84765_dt_bnr_1-1_Installers

Services

Enjoy a 3-year warranty with your installation.

We'll hook up your new appliance, test it to make sure it's working and even walk you through a quick demo on how to use your new appliance.

DOWNLOAD

pdfdown-25x25

Datasheet

pdfdown

Glovebox Catalog

pdfdown

Coating Machine Catalog

How to find us

CHINA:
No. 9 Leyuan Street, Huairou, Beijing, China
TEL: 86-400-086-8156  MAIL:info@etelux-glovebox.com
USA:
750 SE Sherman St, Albany, OR 97321
TEL: 1-888-999-6186  MAIL:info@etelux-glovebox.com



Ask a question

Your Name (required)

Your Email (required)

Your Message

Package

Package

Glovebox Chamber × 1
Main Antechamber × 1
mini Antechamber × 1
Gas Purification × 1
Vacuum Pump × 1
Glovebox Control System × 1
Oxygen Analyzer × 1
Dew-point Analyzer × 1
Gloves × 2
Solvent removal system × 1
Glovebox Manual × 1
