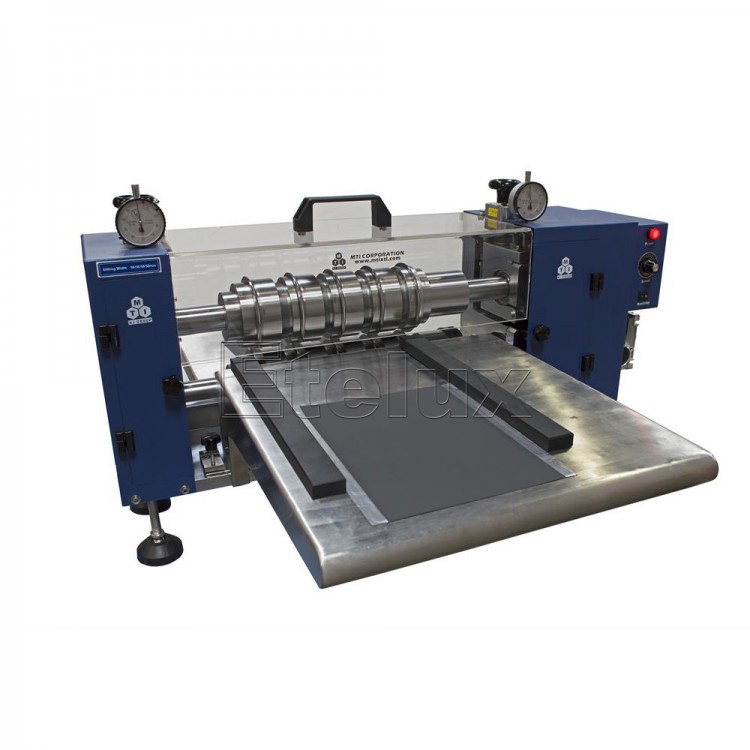

MSK-CSE-300 Electric Slitting Machine

Product introduction:

The MSK-CSE-300 electric slitting machine can be applied to the precision slitting process of positive and negative electrodes of lithium ion batteries. Sheet feeding, upper and lower circular knife slitting, electric drive, slitting width can be adjusted according to the adjustment spacer.

Factory Price, Hige Quality

Description
Reviews (0)
Why Choose Us

Description

Features:

Sheet feeding, upper and lower circular knife cutting mode;

Ultrafine alloy tungsten steel blade, good cutting effect and long service life;

Wide range of slitting material thickness, accurate adjustment of knife consumption;

Motor driven, equipped with feeding guide, small slitting burr;

The slitting width can be adjusted by changing the interval sleeve, and it can also be achieved by configuring a spare knife shaft;

Open knife shaft is fixed, the integrity of the equipment is good, and the operation is convenient;

Technical Parameters

Power	Single-phase voltage 100 ~ 240VAC ± 10%, frequency 50Hz / 60Hz, power 100W, less than 4Ω ground
Use environment	Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference
Slitting method	Monolithic roll cutting
Cutter type	Upper and lower circular knife
Slitting blade	Ultrafine alloy tungsten steel, diameter Φ100mm
Slitting width	Adjustable range: 20 ~ 230mm, can be customized as 20 ~ 280mm
Width adjustment	Replacement spacer adjustment, standard 56/56/58/58 four pieces
Cut thickness	100~300μm
Glitch condition	≤25μm
Depth of Cutting	0.2~0.4mm adjustable, dial indicator display
Slitting speed	Max. 4m/min
Installation size	L870mmW970mmH450mm; L34.3W38.2H17.7inch
Weight	About 100Kg
