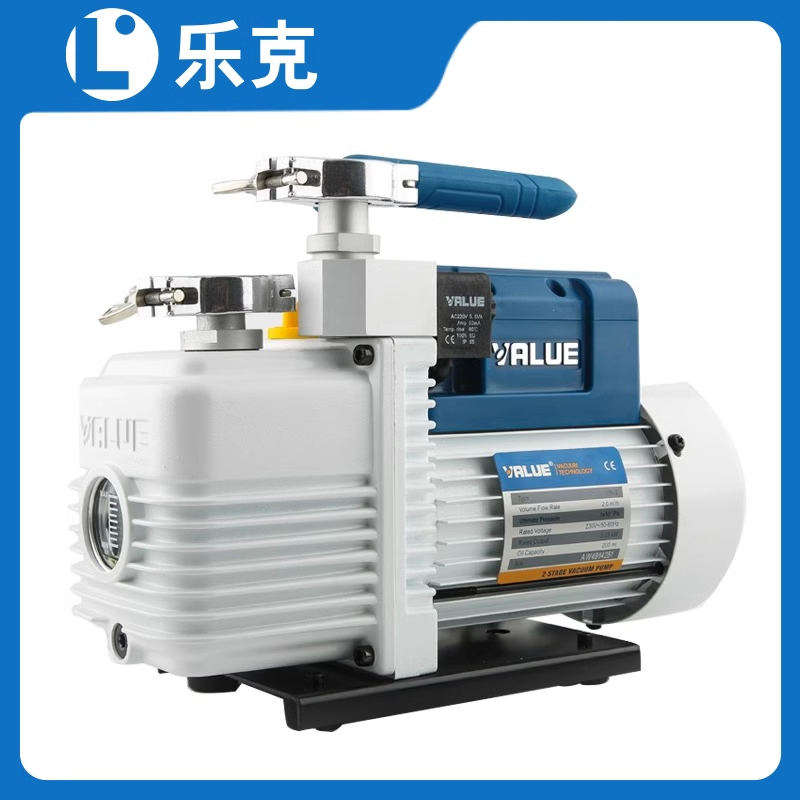

Rotary vane technology simplifies the process structure of the vacuum pump. The integral cylinder structure, supplemented by complete materials, and more advanced precision manufacturing ensure that it can obtain stable high ultimate vacuum during continuous operation; the forced oil pump lubrication system, Ensure the high reliability of the vacuum pump; large oil window design prevents oil shortage. Feiyue Vacuum Pump VI micro pumps are widely used in:
1. Used in refrigeration maintenance
2. Chemical processing
3. Food industry and other industries
4. In short, the Feiyue vacuum pump is a vacuum pump suitable for various occasions.
5. Its reliability makes it an important tool in fields such as industrial production and laboratory research.
Low noise, full copper core, anti-oil return, strong heat dissipation, solenoid valve structure
The large oil window observation port design, format heat dissipation window, and two-stage gas ballast design make it unique in terms of reliability and service as an important tool in industrial production and laboratory research. However, most domestic vacuum pumps can be used for more than 5 years and have an advantage in terms of price.
Technical Parameters
| project | VRD-4 | VRD-6 | VRD-16 | VRD-24 | ||
| Pumping speed | 50Hz | m3/h
(L/s) |
4(1.1) | 8(2.2) | 16(4.4) | 24(6.6) |
| 60Hz | 4.8(1.3) | 9.6(2.6) | 19.2(5.2)) | 28.8(7.9) | ||
| The ultimate partial pressure turns off the gas ballast | Pa | 5×10-2 | 5×10-2 | 4×10-2 | 4×10-2 | |
| Ultimate full pressure, one-off gas ballast | Pa | 5×10-1 | 5×10-1 | 4×10-1 | 4×10-1 | |
| The gas ballast is turned on as soon as the maximum full pressure is reached | Pa | 10 | 10 | 8×10-1 | 8×10-1 | |
| power supply | single/three phase | single/three phase | single/three phase | single/three phase | ||
| power | kw | 0.4/0.37 | 0.4/0.37 | 0.75/0.55 | 0.75/0.55 | |
| Protection level | IP44 | IP44 | IP44 | IP44 | ||
| Intake and exhaust interface | KF16/25 | KF16/25 | KF25 | KF25 | ||
| Oil volume | L | 0.6-1.0 | 0.6-1.0 | 0.9~1.5 | 0.9~1.5 | |
| Motor speed (50/60Hz) | RPM | 1440/1720 | 1440/1720 | 1440/1720 | 1440/1720 | |
| Working temperature | degrees celsius | 10-40 | 10-40 | 10-40 | 10-40 | |
| Noise(50Hz) | Db | <=52 | <=52 | ≤58 | ≤58 | |
| weight | kg | 19 | 21 | 30 | 35 | |
| Size(L*W*H) | mm | 440x144x217 | 440x144x217 | 530x188x272 | 530x188x272 | |
| project | VRD-30 | VRD-48 | VRD-65 | VRD-90 | ||
| Pumping speed | 50Hz | m3/h
(L/s) |
30(8.3) | 48(13.3) | 65(18) | 85(23.6) |
| 60Hz | 36(9.9) | 57.6(16) | 78(21.6) | 102(28.3) | ||
| The ultimate partial pressure turns off the gas ballast | Pa | 4×10-2 | 4×10-2 | 4×10-2 | 4×10-2 | |
| Ultimate full pressure, one-off gas ballast | Pa | 4×10-1 | 4×10-1 | 4×10-1 | 4×10-1 | |
| The gas ballast is turned on as soon as the maximum full pressure is reached | Pa | 8×10-1 | 1.5 | 1.5 | 1.5 | |
| power supply | single/three phase | three phase | three phase | three phase | ||
| power | kw | 1.1 | 1.5 | 2.2 | 3 | |
| Protection level | IP44 | IP44 | IP44 | IP44 | ||
| Intake and exhaust interface | KF25/40 | KF40 | KF40 | KF40 | ||
| Oil volume | L | 1.3-2.0 | 3.3~4.5 | 3.3~4.5 | 3.3~4.5 | |
| Motor speed (50/60Hz) | RPM | 1440/1720 | 1440/1720 | 1440/1720 | 1440/1720 | |
| Working temperature | degrees celsius | 10-40 | 10-40 | 10-40 | 10-40 | |
| Noise(50Hz) | Db | ≤58 | ≤62 | ≤62 | ≤65 | |
| weight | kg | 43 | 62 | 65 | 65 | |
| Size(L*W*H) | mm | 567x188x272 | 730x234x358 | 730x234x358 | 730x234x358 | |
